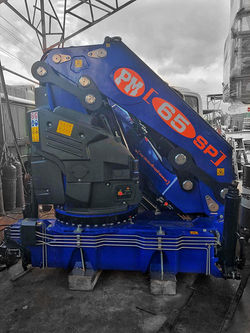

Model: PM 65SP
PM 65SP Platinum
Ideal for heavy-duty applications, the PM 65SP series offers sturdiness, innate technological innovation, power and a lightweight design. With a standard outfitting package that make it one of the best performing PM models, the PM 65SP series shows its superiority in the field, where the operator can really make the most of the extensive outreach, high working speed, lifting power and operational safety. Thanks to the continuous 360° rotation and thrust bearing, perfect freedom of movement is guaranteed. The already high-performance PM 65SP has been further enhanced by the new electronics that have been introduced, which have also resulted in greater monitoring/control power for the operator, including remote control functions. With the PM 65SP crane, the operator can perform difficult tasks in the utmost safety, because crane stabilisation is managed electronically with the application of the type 5 interlock system to the outriggers, which ensures the lifting capacity is based on the truck’s actual stability. The set-ups available for the standard crane include up to 9 hydraulic extensions, for a maximum horizontal outreach of 21.90 m and a maximum vertical outreach of 25.50 m. The extent of the outreach increases significantly with the new 6-extension jibs, which represent a genuine innovation in the market. The performance of the new jibs is enhanced by the application of a new JMP (Jib Multi-Power) system. In any operating condition, the jib always works at the maximum allowed pressure.
Available hydraulic extensions: 4 - 9 (65024-65029)
油壓節數選擇: 4-9節 (65024-65029)
PLATINUM
-
Cranes equipped with LINK system on the articulation
-
Multifunction Radio remote Control (多功能顯示搖控器)
-
Proportional compensated valve block
-
Oil cooler (油壓冷卻器)
-
Endless slewing (無限轉磨盤)
-
Electronic System PM Power Tronic (電腦系統)
-
Available in LC version
